+100
-
40ft long
-
11,449 lbs
-
Sleeps 8
-
4 slides
-
BunkhouseRear Living Area

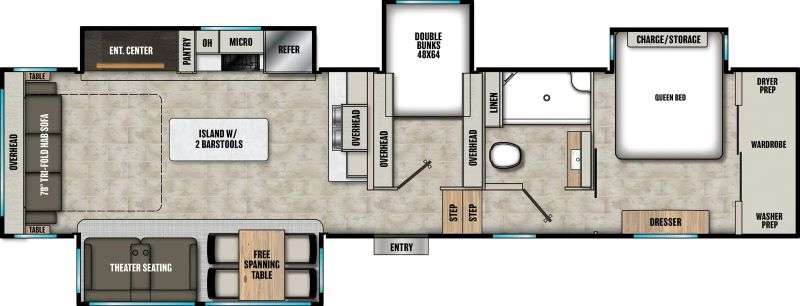

360IBL Floorplan
Specifications
| Sleeps | 8 | Slides | 4 |
| Length | 39 ft 9 in | Ext Width | 8 ft |
| Ext Height | 12 ft 10 in | Hitch Weight | 2100 lbs |
| GVWR | 14000 lbs | Dry Weight | 11449 lbs |
| Cargo Capacity | 2551 lbs | Fresh Water Capacity | 48 gals |
| Grey Water Capacity | 90 gals | Black Water Capacity | 45 gals |
| Tire Size | 16" | Number Of Bunks | 2 |
| Available Beds | Queen | Refrigerator Type | Side by Side Stainless Glass 12V |
| Refrigerator Size | 16 cu ft | Cooktop Burners | 3 |
| Shower Size | 30" x 48" | Number of Awnings | 1 |
| Water Heater Type | On Demand | AC BTU | 27000 btu |
| TV Info | LR 50" 4K Smart LED TV | Awning Info | 18' Electric with LED Light Strip |
| Axle Count | 2 | Washer/Dryer Available | Yes |
| Shower Type | Standard | Electrical Service | 50 amp |
| VIN | 5NHFCPM29TS333261 |
Description
Coachmen RV Chaparral mid-profile fifth wheel 360IBL highlights:
- Island with Two Barstools
- Shower
- Four Slides
- Theatre Seating
- 16 Cu. Ft. Side-By-Side Refrigerator
What could be better than a camping trip with family and friends? A camping trip in this spacious fifth wheel that can sleep eight people comfortably! There is a private middle bunkhouse with double-size bunks and overhead cabinets to store belongings, and a front private bedroom with a queen bed slide out. You'll find storage space in the large bedroom wardrobe that also includes washer and dryer prep if you plan to go full-time or camp for longer periods of time. Everyone can meet in the main living area that includes dual opposing slides, theatre seating, a free-spanning table, plus a tri-fold hide-a-bed sofa! And we didn't even mention the fully-equipped kitchen with stainless steel appliances, an extra deep single basin sink, plus tons of counter space with overhead cabinets for more storage!
The Tri-Tex™ powder coated frame technology is up to 5X more weather resistant, and the Equa-Flex® suspension with 1/2" thick anodized shackles, bronze bushings, and greasable Zerk® fittings will make towing easier than ever. There is also a Solar Source +™ package with an upgraded 200W roof-mounted solar panel, along with an upgraded lithium-ready converter and 30AMP charge controller by Rich Solar® to support off-grid capability. To top it off, the 6X™ Double Azdel® aluminum cage sidewall system helps deliver a strong, vacuum-bonded build, while the upgraded Carbon & Walnut entertainment center with JBL® soundbar adds a premium touch. Now that's what I call luxury! Choose a Chaparral fifth wheel today!
Features
Standard Features (2026)
Exterior
- 6X™ Double Azdel® Aluminum Cage Sidewall System - Vacuum Bonded (R-15+)
- Upgraded 2026 Exterior Graphics Package
- Automotive Inspired Front Cap Design W/ Black Chrome Accents, Amber Strip LEDs, & Luminance Badge
- Luminance Package: LED Strip Light in Pass-Through Storage Compartment
- Luminance Package: Electric Awning W/ LED Light Strip & Pitch Adjustment
- Luminance Package: LED Head Knocker Preventer Lights Under Bed Slide* (Select Models)
- Luminance Package: LED Dump Valve Hook-Up Lights
- Luminance Package: LED Entry Step Light
- 80% Privacy Tint Safety Glass Windows
- Upgraded 200W Roof-Mounted Solar Panel W/ Scaleable Add-On Panel Capabilities
- Upgraded Lithium-Ready Converter & 30AMP Charge Controller by Rich Solar®
- Upgraded JBL® Marine Grade Exterior HD Speaker (Stereo Field of View)
- MORryde® StepAbove® Main Entry (4-Step) *3-Step 298RLS
- 2" Accessory Receiver Hitch* (N/A 360IBL & 389DEK)
- Electric Front Jacks & Electric Rear Stabilizer Jacks (Auto-Level Available)
- LionsHead™ 5,2,1 "No Excuse Guarantee" Radial Tire Warranty + Lifetime Rim
- 16" G-Rated, 14-Ply, Steel-Belted Radial Tires (15" 298RLS)
- XL 37" Extended Entry Grab Bar
- Equa-Flex® Suspension W/ 1/2" Thick Anodized Shackles, Bronze Bushings, & Greeseable Zerk® Fittings
Living Room
- Upgraded Carbon & Walnut Ent. Center W/ JBL® Soundbar Including AM/FM & Bluetooth®
- Upgraded 50" 4K Smart LED TV in Living W/ Articulating Swing Arm Bracket & Travel Lock
- Matte Black Metal Handrail at Stairs
- Upgraded Walnut Secret Hidden Hinge Storage*
- Upgraded Free-Spanning Walnut Table & Four Chairs* W/ Upgraded Residential Style Metal/Wood Design*
- Streamlined "Framed" Floor Register Cover Design (Non-Grated W/ 360 Degree Diffusion)
- Thomas Payne® Theatre Seating* (Model Specific)
- Thomas Payne® Memory Foam Trifold HAB Sofa* (Model Specific)
- Upgraded HD Clear View™ LED Interior Lighting Throughout (Flush) + Motion Sensor Lights (Key Areas)*
- Slow Rise Blackout Roller Night Shades
- High BTU Output, Modern Electric Fireplace
Kitchen
- LG® Solid Surface Countertops (Kitchen)
- Upgraded Aluminum Roll-Up Dish Drying Rack/Sink Cover
- Upgraded HD Clear View™ LED Interior Lighting Throughout (Flush) + Motion Sensor Lights (Key Areas)*
- Upgraded HD Clear View™ Luxury Matte Black LED Island Lighting*
- Large Transom Window At Cooktop Backsplash Location
- Upgraded Matte Black Paper Towel & Cup Holders
- Upgraded Walnut Spice Rack W/ Matte Black Metal Dowels (Model Specific)
- Modern High-Rise Kitchen Faucet
- 16 cu. ft. Side-By-Side Stainless Glass 12V Fridge W/ Smart Touch Functions* (10 cu. ft. Dual Swing 360IBL)
- Upgraded GE® Profile™ 30" Stainless Residential Size Microwave
- Upgraded GE® Profile™ 21" Stainless Steel Oven W/ Residential Style Cooktop, HD Grates, & Piezo Ignition
- Extra Deep Single Basin Sink (Stainless Steel)
Bathroom
- Full-Size Main Shower W/ Sliding Glass Door
- Upgraded (Exclusive) Two-Tone Tear Drop Accented Modern Tile Shower Surround* (N/A 367BH/373MBRB)
- Upgraded (Exclusive) Tear Drop Accent Tile Backsplash* (Select Models)
- Upgraded Toiletry Bag Shelf*
- Upgraded Matte Black Main Shower Frame, Sprayer, & Lav Hardware
- Upgraded Board & Batten Wall W/ Matte Black Towel/Robe Hooks*
- Coachmen Exclusive "Dalmation" LED Backlit Vanity Mirror (Select Models)
- Upgraded Walnut Countertop
- Power Ceiling Vent Fan (12 Volt)
- High-Rise Porcelain Toilet W/ Foot Flush
- Large Linen Closet*
- LED Motion Sensor Light
Bedroom
- King Size Mattress & Bedspread* (Otherwise Queen)
- Upgraded Board & Batten Headboard*
- Upgraded Board & Batten Wall W/ Hooks*
- Upgraded Walnut Bedside Nightstands/Wrap Around Ledge W/ Cup Holders* (Model Specific)
- Upgraded Walnut Secret Hidden Hinge Storage*
- USB-A + USB-C Charging Ports*
- 110 Volt Outlets At Bed*
- Ducted A/C Vents W/ Rotator/Closing Louvers
- Stackable/Side-By-Side* Washer & Dryer Prep* (N/A 381DBL)
- Slow Rise Blackout Roller Night Shades
Construction
- 5" Truss Rafters (16" OC & X2 at A/C) W/ Full Walk on 3/8" Roof Decking
- Tri-Tex™ Powder Coated Frame Technology (Up To 5X More Weather Resistance!)
- Thick Slam Latch Pass-Through Storage Compartment Doors W/ Latch Lock Catches
WEATHER SHIELD +™ 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber)
- 6X™ Double Azdel® Aluminum Cage Sidewall System - Vacuum Bonded (R-15+)
- Radiant Pro™ Weather Barrier System (Roof, Cap, Underbelly, Slides, & Pass-Through)
- High BTU Output Fully Ducted Furnace
- Sectionalized Underbelly & Heated Gate Valves W/ Radiant Pro™ + Circulating Furnace Forced Heat
Utilities/Mechanical
- High BTU Output Fully Ducted Furnace (Radiant Pro™ Insulated Underbelly + Recirculating, Ducted Heat)
- Upgraded 200W Roof-Mounted Solar Panel W/ Scaleable Add-On Panel Capabilities
- Upgraded Lithium-Ready Converter & 30AMP Charge Controller by Rich Solar®
- Marine-Grade Battery & Storage Box
- LP Quick Connect Port
- 50 AMP Service W/ Detachable Marine Cord W/ LED Indicator
- Upgraded GE® 13.5K BTU Ducted Main Air Conditioner + GE® 13.5K BTU Ducted Bedroom Air Conditioner
- Upgraded Heat Pump in All Factory Installed GE® A/Cs
- Third Ducted A/C Prep (360IBL & Larger)
- Upgraded Furrion® 60K BTU On-Demand Water Heater
- 12V Battery Disconnect Switch
- Winegard® Air 360+™ HDTV/Radio Dome Antenna
- Prepped for Available Winegard® Gateway Model: GW-1000 (Adds 4G LTE & Wi-Fi Capabilities)
- Coax Cable Feeds (Living, Bedroom, & Bunk Room)
- Upgraded Marine-Style Convenience Center W/ Black Tank Flush, Hot/Cold Shower
- Stackable/Side-By-Side* Washer & Dryer Prep*
Interior Options
- Linen Décor
- Carbon Décor
Exterior Options
- 3rd GE® 13.5K BTU A/C W/ Heat Pump (Ducted) (N/A 298RLS, 336TSIK)
- Upgraded 4-Point Electric Auto-Leveling W/ Digital Bluetooth® Keypad (Sealed W/ Line-of-Sight to Hitch)
GETAWAY +™ Interior Convenience Package
- Upgraded Carbon & Walnut Ent. Center W/ JBL® Soundbar Including AM/FM & Bluetooth®
- Upgraded 50" 4K Smart LED TV in Living W/ Articulating Swing Arm Bracket
- LG® Solid Surface Countertops (Kitchen)
- High BTU Output, Modern Electric Fireplace
- Upgraded GE® 13.5K BTU Ducted Main Air Conditioner + GE® 13.5K BTU Ducted Bedroom Air Conditioner
- Third Ducted A/C Prep (N/A 298RLS & 336TSIK)
- Upgraded Heat Pump in All Factory Installed GE® A/Cs
- 16 cu. ft. Side-By-Side Stainless Glass 12V Fridge W/ Smart Touch Functions* (10 cu. ft. Dual Swing 360IBL)
- King Size Mattress & Bedspread* (Otherwise Queen)
- Slow Rise Blackout Roller Night Shades
- Upgraded Walnut Secret Hidden Hinge Storage* (Select Models)
- Upgraded Furrion® 60K BTU On-Demand Water Heater
ROAD GUARDIAN +™ Exterior Convenience Package
- Tri-Tex™ Powder Coated Frame Technology (Up To 5X More Weather Resistance!)
- Equa-Flex® Suspension W/ 1/2" Thick Anodized Shackles, Bronze Bushings, & Greeseable Zerk® Fittings
- LionsHead™ 5,2,1 "No Excuse Guarantee" Radial Tire Warranty + Lifetime Rim
- 2" Accessory Receiver Hitch* (N/A 360IBL & 389DEK)
- 80% Privacy Tint Safety Glass Windows
WEATHER SHIELD +™ Package - 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber)
- 6X™ Double Azdel® Aluminum Cage Sidewall System - Vacuum Bonded (R-15+)
- Radiant Pro™ Weather Barrier System (Roof, Cap, Underbelly, Slides, & Pass-Through)
- High BTU Output Fully Ducted Furnace
- Sectionalized Underbelly & Heated Gate Valves W/ Radiant Pro™ + Circulating Furnace Forced Heat
SOLAR SOURCE +™
- Upgraded 200W Roof-Mounted Solar Panel W/ Scaleable Add-On Panel Capabilities
- Upgraded Lithium-Ready Converter & 30AMP Charge Controller by Rich Solar®
- Marine-Grade Battery & Storage Box
- LP Quick Connect Port
- Winegard® Air 360+™ HDTV/Radio Dome Antenna
- Prepped for Available Winegard® Gateway Model: GW-1000 (Adds 4G LTE & Wi-Fi Capabilities)
LUMINANCE PACKAGE™
- Automotive Inspired Front Cap Design W/ Black Chrome Accents, Amber Strip LEDs, & Luminance Badge
- Dual Amber LED Strip Lights at 5th Wheel Front Radius/Hook-up Location
- LED Strip Light in Pass-Through Storage Compartment
- Electric Awning W/ LED Light Strip & Pitch Adjustment
- LED Head Knocker Preventer Lights Under Bed Slide* (Select Models)
- LED Dump Valve Hook-Up Lights
- LED Entry Step Light
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
